| Specifications / Model |
PM-1600 |
PM-3200 |
PM-3200-1 |
PM-3200-2 |
| I/O |
Input pins |
16 |
32 |
32 |
32 |
| Output pins |
\ |
| Extension |
Bus type |
Internal backplane bus |
| Bus port |
12PIN connector, internal backplane bus and power supply |
| Power supply |
Input voltage/current |
DC 24V(-15% – +20%),2A |
| I/O performance |
Input control |
Control power supply 24VDC, isolated |
| Single pin input voltage/current |
DC 24V(-15% – +20%),5mA |
| Input OFF-ON |
Over DC 15V, Current above 1.5mA |
| Input ON-OFF |
Below DC 5V, Current above 1mA |
| Input frequency |
10K |
| Input ON/OFF response time |
20μs/50μs |
| Input type |
NPN/PNP |
| Input resistance |
4.7KΩ (max) |
| Input protection |
Optocoupler isolated, anti-interference |
| Common |
1 common for every 8 outputs |
| Power rating |
24V/47mA |
24V/53mA |
24V/34mA |
24V/34mA |
| I/O functions |
Input function |
Digital signal ON-OFF detection |
| Others |
Power port |
Input and output is supplied 24V power supply by 12PIN |
| I/O terminal |
Plug type terminals, gap 3.5mm, black orange colored |
MIL connector |
Fujitsu connector |
| Indicator light |
Every intput corresponds to 1 indicator light. Lights up when intput ON, light off when input OFF |
| Installation |
Standard DIN rail |
| Dimension |

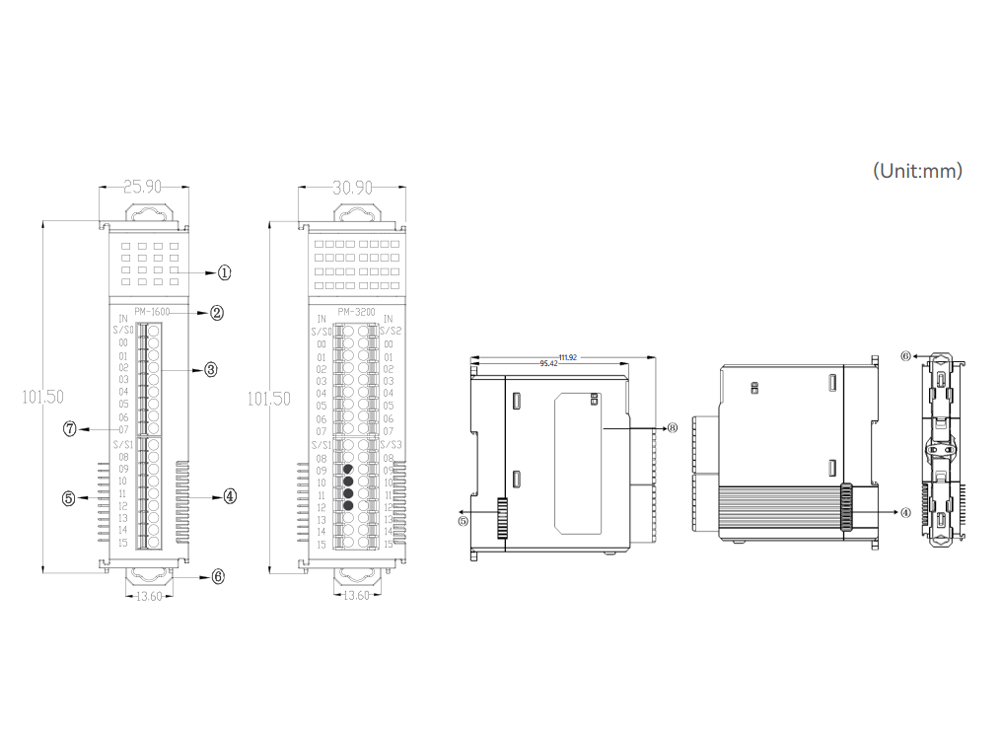

L 111.92mm* W 25.9mm* H 101.5mm |
L 111.92mm*W 30.9mm*H 101.5mm |
| Certification |
CE |
