Thông số kỹ thuật
| Specifications | Model | PM-A0400-IV | ||||||
| AD performance | Output type | voltage/current | ||||||
| Output channels | 4 | |||||||
| Rating input range | 1V~5V | 0V~5V | -5V~5V | 0V~10V | -10V~10V | 0mA~20mA | 4mA~20mA | |
| Rating digital conversion range | 0~32000 | 0~32000 | -32000~32000 | 0~32000 | -32000~32000 | 0~32000 | 0~32000 | |
| Resolution | 16-bit | |||||||
| Output resistance | Voltage output load: 1K~1MΩ; Current load resistance: 100Ω~500Ω |
|||||||
| Overall accuracy (25℃) | Voltage: ±0.1%; Current: ±0.2% | |||||||
| Overall accuracy (0-55℃) | Voltage: ±0.2%; Current: ±0.3% | |||||||
| Response time | 1ms/4 channels | |||||||
| Output method | Single-ended/differential (compatible) | |||||||
| Data format | Integer | |||||||
| Alarm | Software+hardware indicator | |||||||
| Others | Power supply port | Power supply by 12PIN, 24V | ||||||
| Power protection | Over-current protection, reverse polarity protection | |||||||
| I/O terminal | Plug type terminals, gap 3.5mm, black orange colored | |||||||
| Indicator light | RUN (green) /ERR(red)two indicator light (RUN: running status indicator light, After power on, it will light up normally and go out if a fault occurs; ERR: error status indicator light, go out if a fault occurs) | |||||||
| Installation | Standard DIN rail | |||||||
| Dimension | L 111.92mm*W 25.9mm*H 101.5mm | |||||||
| Label | Product information | |||||||
| Certification | CE | |||||||
| Hardware circuit over-voltage protection | Analog limit 24V, power limit 30V | |||||||

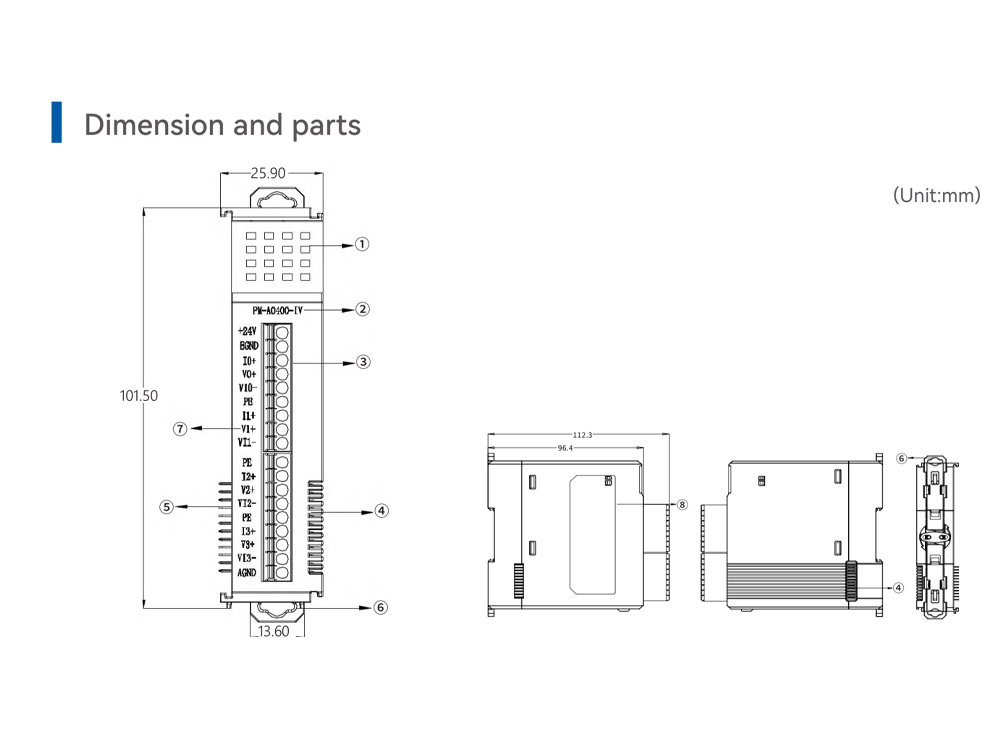

Bản vẽ
| No. | Label | Description |
| ① | Status indicator light | RUN、ERR indicator light |
| ② | Module name | Module name |
| ③ | Terminal | 4 output (voltage or current output) |
| ④ | Extension module communication port | To communication with other extension modules |
| ⑤ | Extension module communication port | To communication with other extension modules |
| ⑥ | Snap | To install on DIN rail |
| ⑦ | Pin number | Indicates I/O pin no. |
| ⑧ | Label | Product information |
