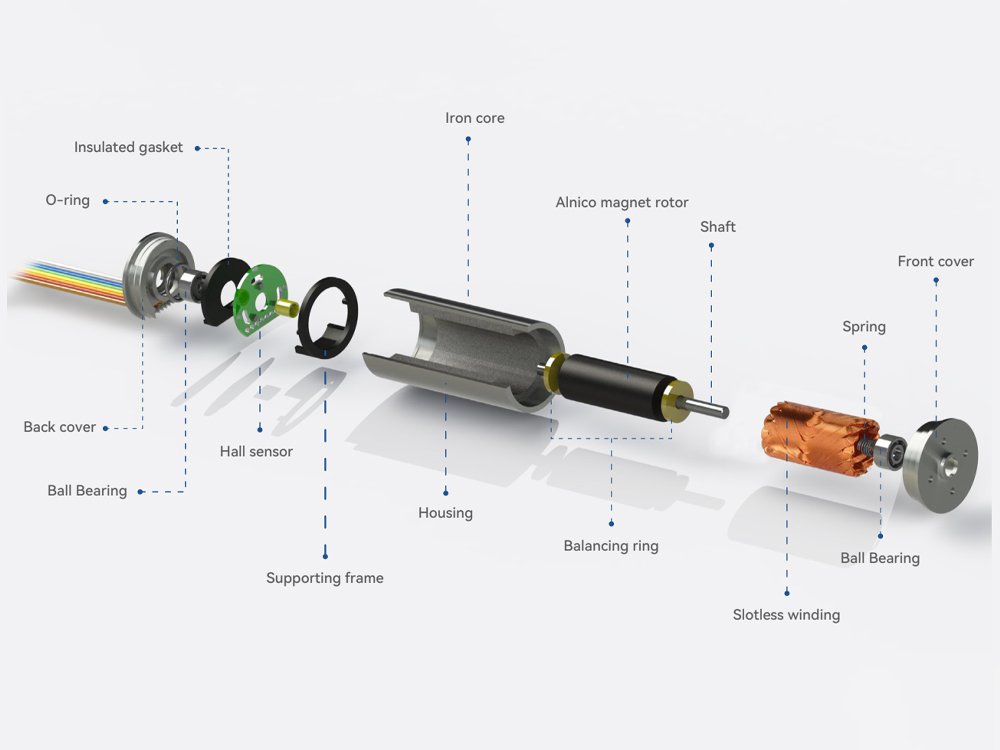

Cấu tạo
Cách đặt tên
Thông số kỹ thuật
| Series | Motor Model | Rated Power (W) |
Rated Torque (mNm) |
No-load Speed (rpm) |
Rated Current (A) |
Rated Voltage Range (V) |
| Standard EC | EC-1220 | 4.0 | 1.5 | 37,000 | 0.8 | 6~9 |
| EC-1230 | 6.5 | 3.0 | 25,000 | 1.5 | 6~12 | |
| EC-1325 | 6.0 | 2.9 | 25,000 | 1.3 | 6~24 | |
| EC-1337 | 12.0 | 5.7 | 25,000 | 2.4 | 6~36 | |
| EC-1624 | 2.0 | 3.2 | 13,000 | 0.9 | 6~12 | |
| EC-1636 | 7.5 | 6.0 | 15,000 | 1.6 | 6~24 | |
| EC-2232 | 8.5 | 10.7 | 12,000 | 2.5 | 6~36 | |
| EC-2248 | 25.0 | 22.5 | 12,000 | 2.6 | 6~36 | |
| EC-3042 | 25.0 | 33.9 | 9,000 | 2.8 | 6~48 | |
| EC-3064 | 50.0 | 62.2 | 9,000 | 4.6 | 12~48 | |
| EC-4058 | 65.0 | 85.0 | 8,000 | 6.4 | 12~48 | |
| EC-4088 | 155.0 | 200.0 | 8,000 | 7.4 | 24~48 | |
| High Speed ECH | ECH-0823 | 3.5 | 1.2 | 35,000 | 0.9 | 6~12 |
| ECH-1028 | 4.0 | 1.6 | 32,000 | 1.2 | 6~24 | |
| ECH-1337 | 25.0 | 4.2 | 65,000 | 1.9 | 19~48 | |
| ECH-1348 | 45.0 | 6.9 | 65,000 | 2.9 | 18~48 | |
| ECH-1640 | 40.0 | 8.1 | 50,000 | 2.7 | 18~48 | |
| ECH-1656 | 100.0 | 15.5 | 63,000 | 6.1 | 18~48 | |
| ECH-2245 | 110.0 | 19.7 | 55,000 | 6.2 | 18~48 | |
| ECH-2260 | 110.0 | 19.7 | 55,000 | 6.2 | 18~48 | |
| High Torque ECT | ECT-2248 | 65.0 | 43.8 | 16,000 | 4.2 | 18~48 |
| ECT-2266 | 85.0 | 53.0 | 17,000 | 5.4 | 18~48 | |
| ECT-3047 | 120.0 | 72.1 | 17,000 | 7.5 | 18~48 | |
| ECT-3064 | 150.0 | 92.7 | 16,000 | 7.4 | 24~48 |
