Thông số kỹ thuật
| Specifications / Model | R2EC | |
| Power | Input Power | DC24V(-15%~+20%),2A |
| Output Power | DC24V(-15%~+20%),2A | |
| Extension | Bus type | EtherCAT |
| Bus port | RJ45 crystal head (inclined at 30 degrees), internal connector | |
| Bus performance | Physical port | 2*RJ45 with green and yellow status indicator light,one input one output ,rate :100M |
| Bus type | EtherCAT | |
| Bus functions | Complies with EtherCAT bus standards, occupies one slave station, can expand up to 32 modules with one coupler, and supports SM/DC synchronization mode | |
| Others | Installation | Standard DIN rail |
| Dimension | L100.92mm*W42.5mm*H110mm | |
| Certification | CE | |

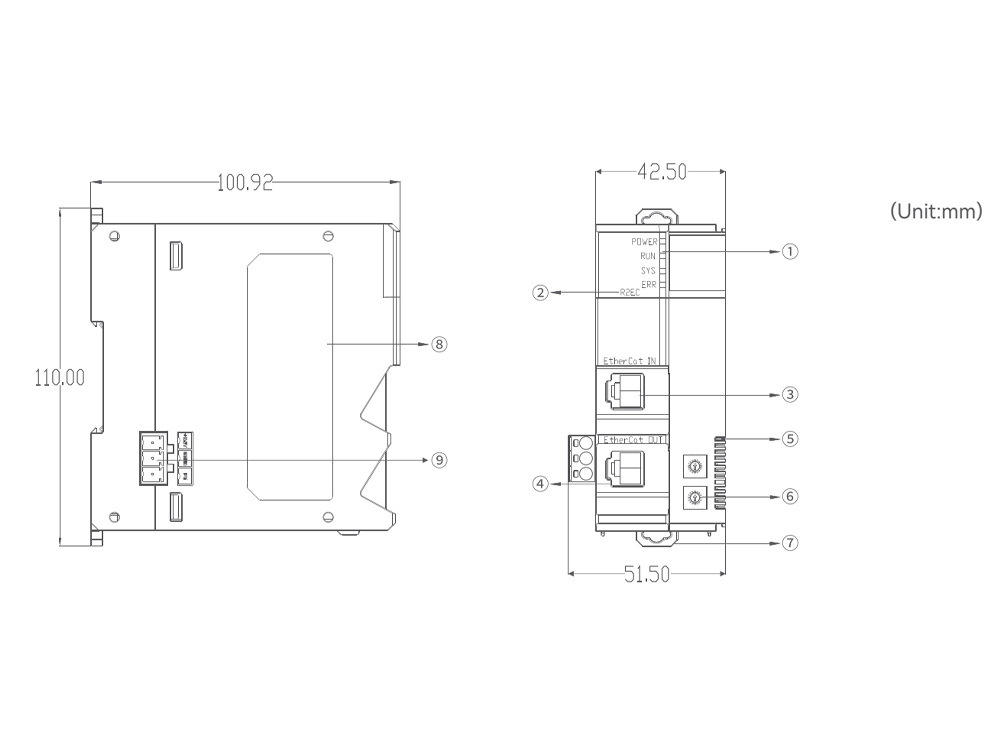

Bản vẽ
| No. | Label | description |
| ① | Panel indicator light | POWER:Power indicator light(green) SYS:System running indicator light(green)RUN:EtherCAT Bus indicator light(green)ERR:EtherCAT Bus alarm indicator light(red) |
| ② | Module name | Adapter model |
| ③ | EtherCAT·IN | RJ45network indicator light: Green: Link,constant light indicates successful link Yellow: Active,flashing indicates data transmission Theflashing rule meets the standards defined by the EtherCATbus |
| ④ | EtherCAT·OUT | Green: Link,constant light indicates successful link Yellow: Active,flashing indicates data transmission Theflashing rule meets the standards defined by the EtherCATbus |
| ⑤ | Extension module communication port | To communication with other extension modules |
| ⑥ | Switch | Set the slave node number |
| ⑦ | Snap | To install on DIN rail |
| ⑧ | Label | Product information |
| ⑨ | Power port | Power port, DC24V, +24V、EGND、PE from top to bottom |
