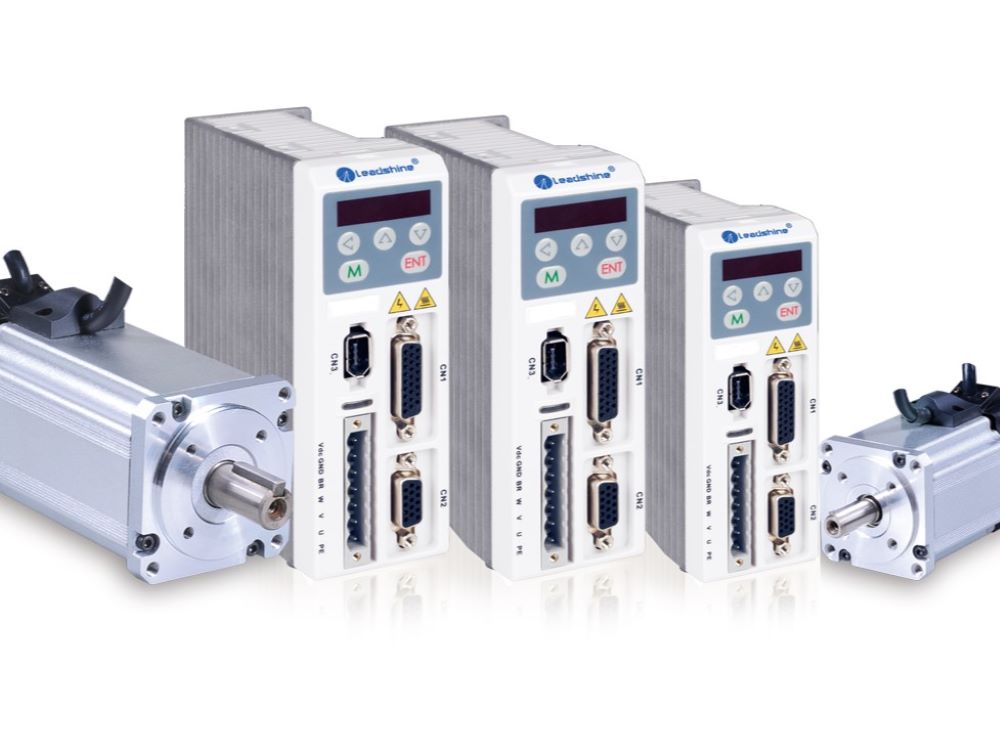

Danh mục các loại động cơ AC Servo Leadshine

AC Servo Leadshine EL6 Series

EL6-Series
Mã Điện áp đầu vào (VAC) Công suất (W) Dòng định mức (Arms) Dòng đỉnh (Arms) Nguồn lệnh
EL6-RS400P 220VAC 1ph 400 3.5 9.5 Modbus RTU/Pulse+Direction EL6-RS
EL6-RS750P 220VAC 1ph 750 5.5 16.6 Modbus RTU/Pulse+Direction
EL6-RS1000P 220VAC 1ph 1000 7 18.7 Modbus RTU/Pulse+Direction
EL6-RS1500P 220VAC 1ph/3ph 1500 9.5 28.5 Modbus RTU/Pulse+Direction
EL6-RS2000P 220VAC 1ph/3ph 2000 12 36 Modbus RTU/Pulse+Direction
EL6-EC400 220VAC 1ph 400 3.5 10.5 EtherCAT EL6-EC
EL6-EC750 220VAC 1ph 750 5.5 15.5 EtherCAT
EL6-EC1000 220VAC 1ph 1000 7.5 21.5 EtherCAT
EL6-EC1500 220VAC 1ph/3ph 1500 9.5 28.5 EtherCAT
EL6-EC2000 220VAC 1ph/3ph 2000 12 36 EtherCAT
EL6-CAN400Z 220VAC 1ph 400 3 9.2 CANopen EL6-CAN
EL6-CAN750Z 220VAC 1ph 750 5.2 16.6 CANopen
EL6-CAN1000Z 220VAC 1ph 1000 7.5 18.7 CANopen
EL6-CAN1500Z 220VAC 1ph/3ph 1500 9.5 28.5 CANopen
EL6-CAN2000Z 220VAC 1ph/3ph 2000 12 36 CANopen

AC Servo Leadshine EL7 Series

EL7-Series
Mã Điện áp đầu vào (VAC) Công suất (W) Dòng định mức (Arms) Dòng đỉnh (Arms) Nguồn lệnh
EL7-EC400F 220VAC 1ph 400 3.5 10.5 EtherCAT EL7-EC
EL7-EC400N 220VAC 1ph 400 3.5 10.5 EtherCAT
EL7-EC750F 220VAC 1ph 750 5.5 16.5 EtherCAT
EL7-EC750N 220VAC 1ph 750 5.5 15.5 EtherCAT
EL7-EC750NT 400VAC 3ph 750 2.5 8.6 EtherCAT
EL7-EC1000N 220VAC 1ph 1000 7.5 21.5 EtherCAT
EL7-EC1000F 220VAC 1ph 1000 7 18.7 EtherCAT
EL7-EC1000NT 400VAC 3ph 1000 3.5 10.6 EtherCAT
EL7-EC1500N 220VAC 1ph/3ph 1500 9.5 28.5 EtherCAT
EL7-EC1500F 220VAC 1ph/3ph 1500 9.5 28.5 EtherCAT
EL7-EC1500NT 400VAC 3ph 1500 5.4 14.9 EtherCAT
EL7-EC2000F 220VAC 1ph/3ph 2000 12 36 EtherCAT
EL7-EC2000N 220VAC 1ph/3ph 2000 12 36 EtherCAT
EL7-EC2000NT 400VAC 3ph 2000 8.4 24.8 EtherCAT
EL7-EC3000NT 400VAC 3ph 3000 11.9 33.2 EtherCAT
EL7-EC4400NT 400VAC 3ph 4400 16.5 38.9 EtherCAT
EL7-EC5500NT 400VAC 3ph 5500 20.8 51.6 EtherCAT
EL7-EC7500NT 400VAC 3ph 7500 25.7 63.6 EtherCAT
EL7-RS400P 220VAC 1ph 400 3.5 9.5 Modbus RTU/Pulse+Direction/Analogue EL7-RS
EL7-RS750P 220VAC 1ph 750 5.5 16.6 Modbus RTU/Pulse+Direction/Analogue
EL7-RS750PT 400VAC 3ph 750 2.7 8.6 Modbus RTU/Pulse+Direction/Analogue
EL7-RS1000P 220VAC 1ph 1000 7 18.7 Modbus RTU/Pulse+Direction/Analogue
EL7-RS1000PT 400VAC 3ph 1000 3.5 10.6 Modbus RTU/Pulse+Direction/Analogue
EL7-RS1500P 220VAC 1ph/3ph 1500 9.5 28.5 Modbus RTU/Pulse+Direction/Analogue
EL7-RS1500PT 400VAC 3ph 1500 5.4 14.9 Modbus RTU/Pulse+Direction/Analogue
EL7-RS2000P 220VAC 1ph/3ph 2000 12 36 Modbus RTU/Pulse+Direction/Analogue
EL7-RS2000PT 400VAC 3ph 2000 8.4 24.8 Modbus RTU/Pulse+Direction/Analogue
EL7-RS3000PT 400VAC 3ph 3000 11.9 33.2 Modbus RTU/Pulse+Direction/Analogue
EL7-RS4400PT 400VAC 3ph 4400 16.5 38.9 Modbus RTU/Pulse+Direction/Analogue
EL7-RS5500PT 400VAC 3ph 5500 20.8 51.6 Modbus RTU/Pulse+Direction/Analogue
EL7-RS7500PT 400VAC 3ph 7500 25.7 63.6 Modbus RTU/Pulse+Direction/Analogue

AC Servo Leadshine EL8 Series

EL8-Series
Mã Điện áp đầu vào (VAC) Công suất (W) Dòng định mức (Arms) Dòng đỉnh (Arms) Nguồn lệnh
EL8-RS400F 220VAC 1ph/3ph 400 2.8 9.3 Modbus RTU/Pulse+Direction EL8-RS
EL8-RS750F 220VAC 1ph/3ph 750 5.5 16.9 Modbus RTU/Pulse+Direction
EL8-RS1000F 220VAC 1ph/3ph 1000 7 21.2 Modbus RTU/Pulse+Direction
EL8-RS1500F 220VAC 1ph/3ph 1500 9.5 31.3 Modbus RTU/Pulse+Direction
EL8-RS2000F 220VAC 1ph/3ph 2000 12 36 Modbus RTU/Pulse+Direction
EL8-EC400F 220VAC 1ph/3ph 400 2.8 9.3 ETherCAT EL8-EC
EL8-EC750F 220VAC 1ph/3ph 750 5.5 16.9 ETherCAT
EL8-EC1000F 220VAC 1ph/3ph 1000 7 21.2 ETherCAT
EL8-EC1500F 220VAC 1ph/3ph Sắp ra mắt
EL8-EC2000F 220VAC 1ph/3ph

AC Servo Leadshine ELM1 Series

Động cơ ELM1 Series
Mã Kích thước khung Công suất (W) Điện áp (VAC) Momen-xoắn (N*m) Dòng định mức (Arms) Tốc độ (r/min) Encoder Phanh
ELM1H-0050MA40E 40 50 220 0.16 0.48 3000 23-bit Yes
ELM1H-0050MA40F 40 50 220 0.16 0.48 3000 23-bit No
ELM1H-0100MA40E 40 100 220 0.32 0.95 3000 23-bit Yes
ELM1H-0100MA40F 40 100 220 0.32 0.95 3000 23-bit No
ELM1H-0200MA60E 60 200 220 0.64 1.92 3000 23-bit Yes
ELM1H-0200MA60F 60 200 220 0.64 1.92 3000 23-bit No
ELM1H-0400MA60E 60 400 220 1.27 3.81 3000 23-bit Yes
ELM1H-0400MA60F 60 400 220 1.27 3.81 3000 23-bit No
ELM1H-0750MA80E 80 750 220 2.39 7.17 3000 23-bit Yes
ELM1H-0750MA80F 80 750 220 2.39 7.17 3000 23-bit No
ELM1H-1000MA80E 80 1000 220 3.18 9.54 3000 23-bit Yes
ELM1H-1000MA80F 80 1000 220 3.18 9.54 3000 23-bit No
ELM1H-0850MD130E-H 130 850 220 5.39 6.8 1500 23-bit Yes
ELM1H-0850MD130F-H 130 850 220 5.39 6.8 1500 23-bit No
ELM1H-1300MD130E-H 130 1300 220 8.34 9.3 1500 23-bit Yes
ELM1H-1300MD130F-H 130 1300 220 8.34 9.3 1500 23-bit No
ELM1H-1800MD130E-H 130 1800 220 11.5 11.2 1500 23-bit Yes
ELM1H-1800MD130F-H 130 1800 220 11.5 11.2 1500 23-bit No
ELM1M-1500MA130E-H 130 1500 220 4.9 6.8 3000 23-bit Yes
ELM1M-1500MA130F-H 130 1500 220 4.9 6.8 3000 23-bit No

AC Servo Leadshine ELM2 Series

Động cơ ELM2 Series
Mã Kích thước khung Công suất (W) Điện áp (VAC) Momen-xoắn (N*m) Dòng định mức (Arms) Tốc độ (r/min) Encoder Phanh
ELM2H-0050LA40F 40 50 220 0.16 0.48 3000 23-bit No
ELM2H-0050LA40E 40 50 220 0.16 0.48 3000 23-bit Yes
ELM2H-0100LA40F 40 100 220 0.32 0.95 3000 23-bit No
ELM2H-0100LA40E 40 100 220 0.32 0.95 3000 23-bit Yes
ELM2H-0200LA60F 60 200 220 0.64 1.92 3000 23-bit No
ELM2H-0200LA60E 60 200 220 0.64 1.92 3000 23-bit Yes
ELM2H-0400LA60F 60 400 220 1.27 3.81 3000 23-bit No
ELM2H-0400LA60E 60 400 220 1.27 3.81 3000 23-bit Yes
ELM2H-0750LA80F 80 750 220 2.39 7.17 3000 23-bit No
ELM2H-0750LA80E 80 750 220 2.39 7.17 3000 23-bit Yes
ELM2H-1000LA80F 80 1000 220 3.18 9.54 3000 23-bit No
ELM2H-1000LA80E 80 1000 220 3.18 9.54 3000 23-bit Yes
ELM2H-0750LA80FT 80 750 400 2.39 2.7 3000 23-bit No
ELM2H-0750LA80ET 80 750 400 2.39 2.7 3000 23-bit Yes
ELM2H-1000LA80FT 80 1000 400 3.18 4 3000 23-bit No
ELM2H-1000LA80ET 80 1000 400 3.18 4 3000 23-bit Yes
ELM2L-1000LA100FT-H 100 1000 400 3.2 3.9 3000 23-bit No
ELM2L-1000LA100ET-H 100 1000 400 3.2 3.9 3000 23-bit Yes
ELM2L-1500LA100FT-H 100 1500 400 4.9 4.5 3000 23-bit No
ELM2L-1500LA100ET-H 100 1500 400 4.9 4.5 3000 23-bit Yes
ELM2L-2000LA100FT-H 100 2000 400 6.36 6.5 3000 23-bit No
ELM2L-2000LA100ET-H 100 2000 400 6.36 6.5 3000 23-bit Yes
ELM2L-2500LA100FT-H 100 2500 400 7.96 7.6 3000 23-bit No
ELM2L-2500LA100ET-H 100 2500 400 7.96 7.6 3000 23-bit Yes
ELM2H-0850LD130F-H 130 850 220 5.39 6.8 1500 23bit optical No
ELM2H-0850LD130E-H 130 850 220 5.39 6.8 1500 23bit optical Yes
ELM2H-1300LD130F-H 130 1300 220 8.34 9.3 1500 23bit optical No
ELM2H-1300LD130E-H 130 1300 220 8.34 9.3 1500 23bit optical Yes
ELM2H-1800LD130F-H 130 1800 220 11.5 11.2 1500 23bit optical No
ELM2H-1800LD130E-H 130 1800 220 11.5 11.2 1500 23bit optical Yes
ELM2M-1000LB130F-H 130 1000 220 4 4 2500 23-bit No
ELM2M-1000LB130E-H 130 1000 220 4 4 2500 23-bit Yes
ELM2M-1500LB130F-H 130 1500 220 6 6 2500 23-bit No
ELM2M-1500LB130E-H 130 1500 220 6 6 2500 23-bit Yes
ELM2M-2000LB130F-H 130 2000 220 7.7 7.5 2500 23-bit No
ELM2M-2000LB130E-H 130 2000 220 7.7 7.5 2500 23-bit Yes
ELM2H-0850LD130ET-H 130 850 400 5.39 3.5 1500 23-bit optical Yes
ELM2H-0850LD130FT-H 130 850 400 5.39 3.5 1500 23-bit optical No
ELM2H-1300LD130ET-H 130 1300 400 8.34 4.6 1500 23-bit optical Yes
ELM2H-1300LD130FT-H 130 1300 400 8.34 4.6 1500 23-bit optical No
ELM2H-1800LD130ET-H 130 1800 400 11.5 5.6 1500 23-bit optical Yes
ELM2H-1800LD130FT-H 130 1800 400 11.5 5.6 1500 23-bit optical No
ELM2M-3800LB130FT-H 130 3800 400 15 7.4 2500 23-bit No
ELM2M-3800LB130ET-H 130 3800 400 15 7.4 2500 23-bit Yes
ELM2M-2900LD180FT-H 180 2900 400 18.6 11.9 1500 23-bit No
ELM2M-2900LD180ET-H 180 2900 400 18.6 11.9 1500 23-bit Yes
ELM2M-4400LD180FT-H 180 4400 400 28.4 16.3 1500 23-bit No
ELM2M-4400LD180ET-H 180 4400 400 28.4 16.3 1500 23-bit Yes
ELM2M-5500LD180FT-H 180 5500 400 35 20.5 1500 23-bit No
ELM2M-5500LD180ET-H 180 5500 400 35 20.5 1500 23-bit Yes
ELM2M-7500LD180FT-H 180 7500 400 48 25.7 1500 23-bit No
ELM2M-7500LD180ET-H 180 7500 400 48 25.7 1500 23-bit Yes
